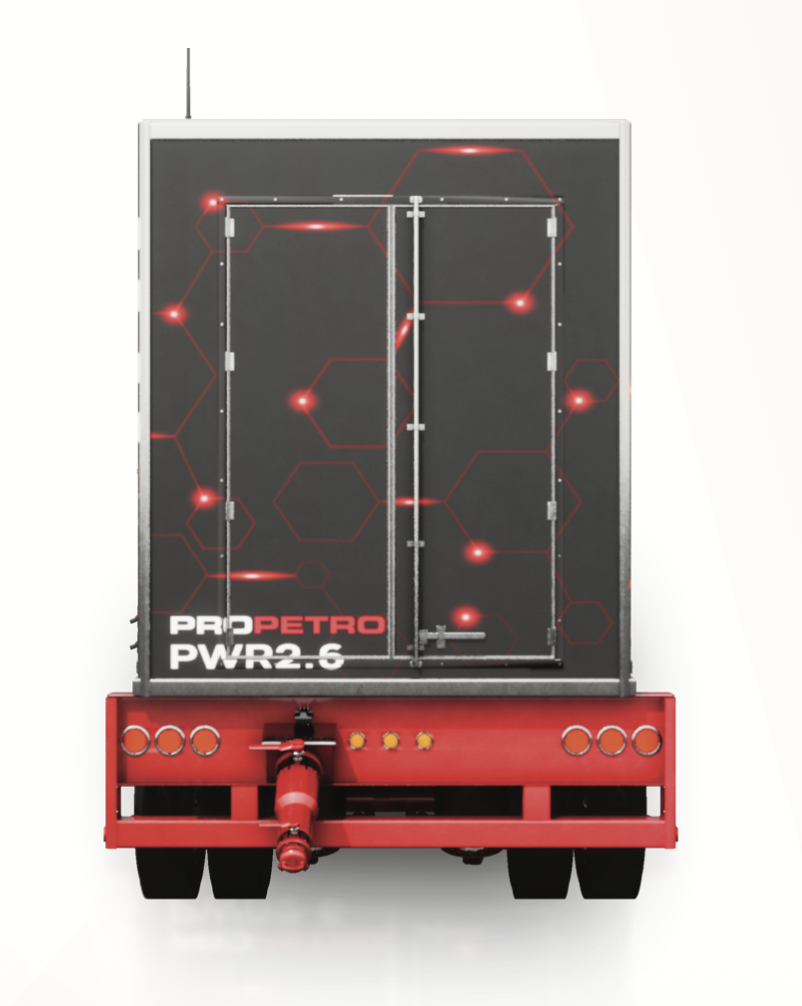

PWR2.6-M
Nat Gas Recip Mobile Generator Packages
THE PWR2.6-M IS THE OPTIMAL SOLUTION FOR STATIONARY INSTALLATIONS, OFFERING BOTH ECONOMIC EFFICIENCY AND ENVIRONMENTAL SUSTAINABILITY. IT IS METICULOUSLY DESIGNED TO MEET THE CRITICAL REQUIREMENTS OF PROJECTS DEMANDING HIGH AVAILABILITY AND EFFICIENCY. THE PWR2.6-M IS POWERED BY THE CATERPILLAR G3520 GAS RECIPROCATING ENGINE, A PROVEN INDUSTRY STANDARD.
APPLICATIONS
- Temporary Mobile Installations
- Microgrid Installations
- Gas Processing Plants
- Gas-E Compression
- Production
- In-Field Power
- E-Drilling
- eFrac/Electric Frac
- Facility Power
- Chemical Plants
- Temporary Emergency Power
- Industrial Power Installations
- Modular Stationary Installations
- Data Center (Hyperscaler & AI)
TECHNICAL SPECIFICATIONS
- Prime Mover: G3520 Gas Recip Engine
- Power Output: 2.6MWe (Site Conditions)
- Voltage/Frequency: 13.8kV @ 60HZ (AVR Capable To 12.47kV)
- Power Factor: 1PF to .8PF
- Emissions: 1G/BHP-HR NOX (EPA NRM Certified)
- Emissions Technology: Lean Burn Engine Technology
- Fuels: Natural Gas (Processed Field Gas, Pipeline and CNG)
- Gas Quality: Wide Range of MN (For Full Power > 72MN Required)
- Heat Rate: 8,949 Btu/bhp-hr(~39% – 44.9% Efficiency)

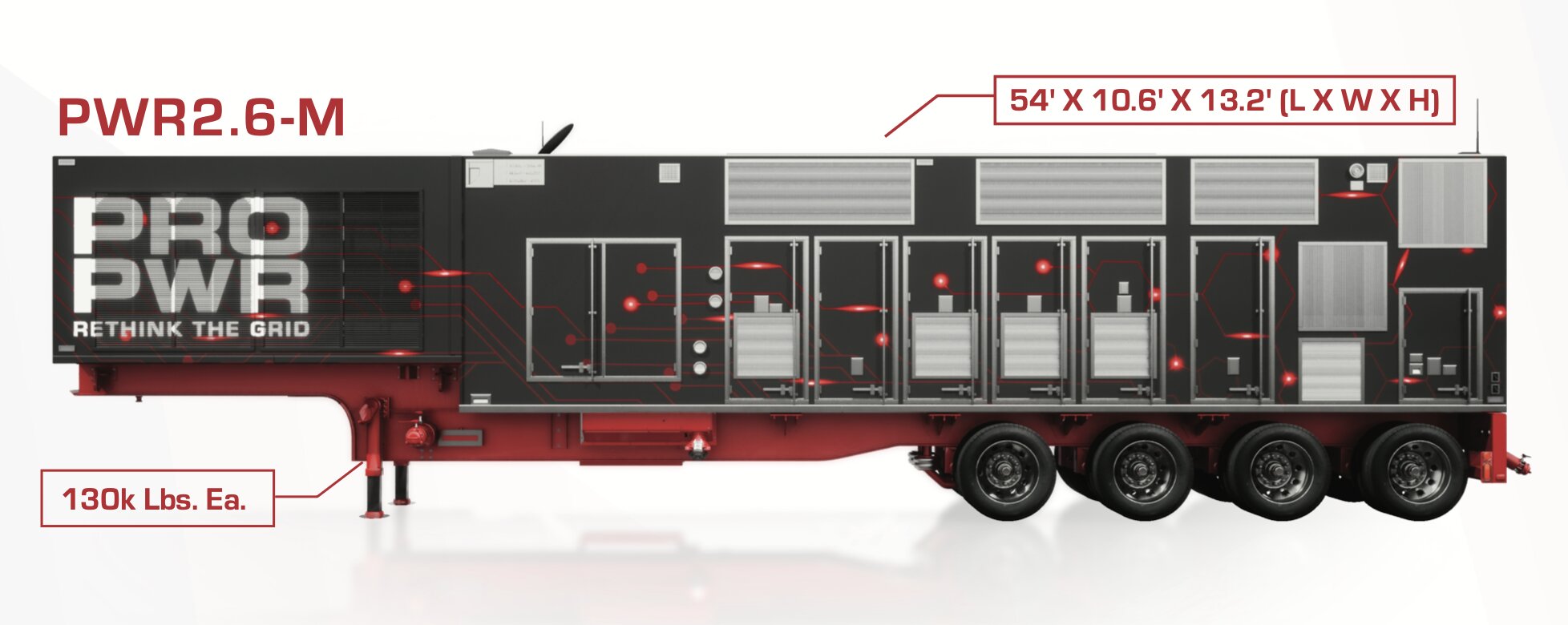

- Dimensions: 54′ x 10.6′ x 13.2′ (LxWxH)
- Weight: 130,000lbs
FEATURES
- Modular Stationary Utility Grade Nat Gas Recip
- Low Maintenance Intervals and High Engine TBO
- For Temporary Installations Ranging From: 5MW – 25MW+
- Self-Sustained Auxilaries with 480V
- On-Board Transformer
- Mobile Connectivity with Remote Monitoring
and Operations Capabilities via LIVE Center - EPA Non-Road Mobile Certified Emissions,
for Temporary Mobile Installations - Designed for Continuous Duty Operations in
- Base Load and Variable Load Applications
- Multi-Unit Parallel and Load Sharing Capabilities
with Various PWR Asset Types
PROPWR
ProPWR 2.6 Video Walkthrough
